Premier DCM 15 Melanger Melanger

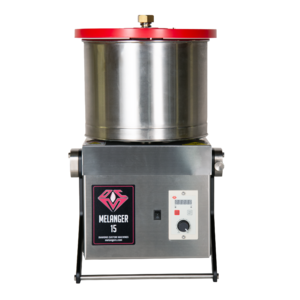

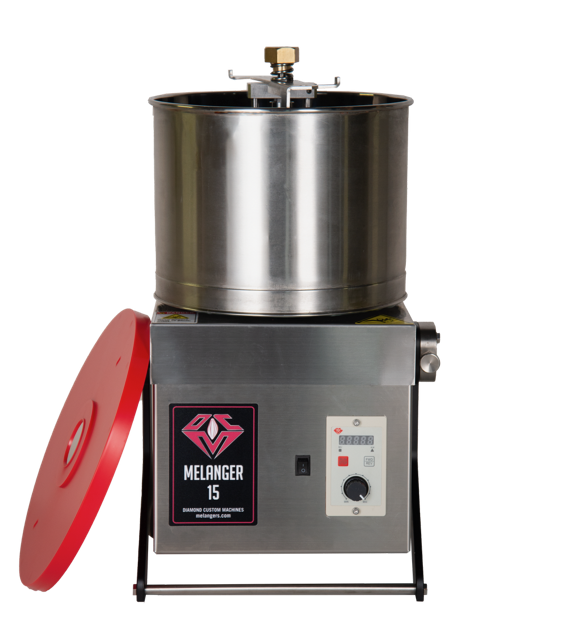

Premier DCM 15 Melanger
Price

Description

Our Premier DCM 15 Melanger melanger (with a 7 kg capacity) is designed for artisanal production of nut butters and chocolate—ideal for those who want to take their brand to the next level by creating award-winning products such as chocolate, exquisite urbech, pralines, spreads, and ice cream bases.



Efficient processing of raw materials helps preserve their nutritional value as much as possible while also extending the product's shelf life. This melanger is ideal for processing raw ingredients with high nutritional value.



Annual chocolate production using the DCM Melanger 15 is approximately 472 kg. Annual production of nut butter (paste) is about 1,362 kg. These calculations are based on a standard operating schedule of 260 days with approximately 80% machine utilization: assuming that it takes three days to produce a batch of chocolate and only one batch of nut paste per day.

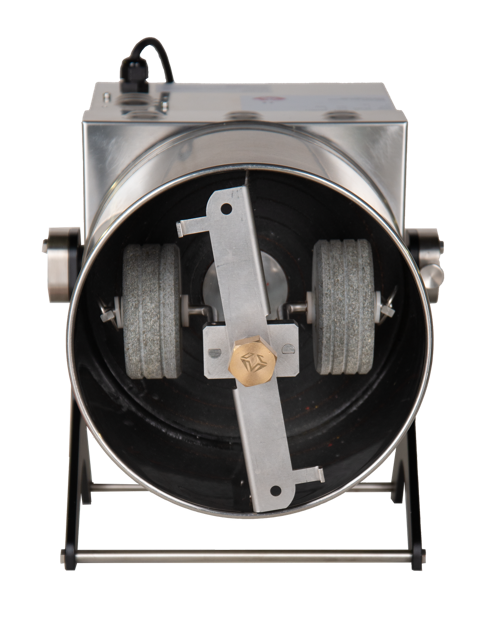

Built to the highest quality standards and manufactured in the U.S., the DCM Melanger 15 is custom-built and equipped with high-quality, all-natural granite grinding discs that produce a particle size of less than 20 microns for a perfectly smooth result.



The highly efficient, energy-saving Premier DCM Melanger 15 motor is designed specifically for 24/7/365 operation. The motor operates based on the current load and consumes only the necessary amount of electricity, resulting in significant savings for the manufacturer.



The appliance is ready to use right out of the box and features a convenient tilt mechanism that makes cleaning and removing food quick and easy. Operating the machine is intuitive.



The modular design of the Premier DCM Melanger 15 makes it easy to assemble and disassemble the unit, and setup requires only basic skills and simple tools. The Melanger is light enough for one person to carry.



The bowls and grinding discs for the other Premier melangers are compatible with the DCM 15.



The Premier DCM 15 melanger meets or exceeds the latest international safety and energy efficiency standards and has received CE certification for its ease of use and safety.





The main advantages of this model are:





Made entirely in the U.S.



High-quality, U.S.-manufactured components and food-grade sealants are used in all DCM Premier melangers.



In addition, only all-natural, high-quality granite stones are used.



Direct drive from a fully sealed transmission housing, with no belts or chains. The melanger is designed for continuous operation without the need for maintenance or downtime.



Increased capacity up to 7 kg.



Nut butter production (260 working days): 1,360 kg



Chocolate output (260 working days): 472 kg



This compact melanger generates high grinding force, ensuring optimal processing of raw materials.

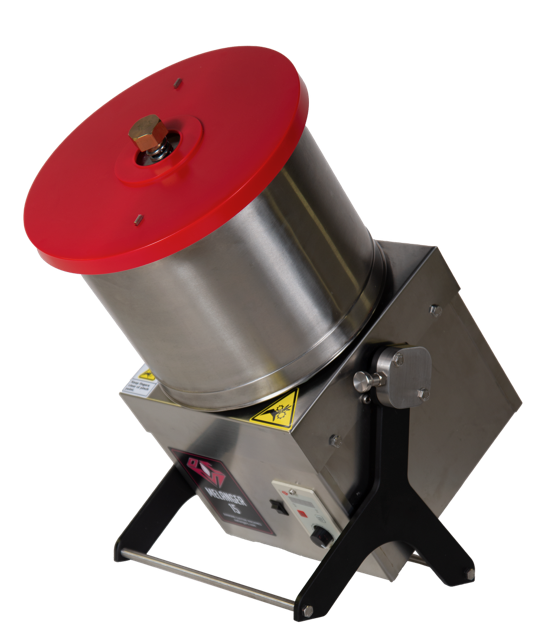

It features a mechanism that tilts the bowl drum for easy unloading of the finished product. The machine can be operated by a single operator.



Standard power supply: 220 V.



Variable bowl rotation speed from 0 to 120 rpm.



A sturdy frame for durability and hygiene.



Compatible with all Premier Chocolate Refiners bowls.



The motor protection system shuts down the entire melanger in the event of an overload, protecting your investment.



The pressure regulator adjusts the pressure between the rollers during the processing, providing complete control over the process.



Maintaining the machine requires only basic skills and simple tools.



Spare parts are in stock and are delivered quickly to avoid prolonged downtime.



The machine is shipped in two standard boxes.



1-year warranty.



TECHNICAL SPECIFICATIONS AND DIMENSIONS:



CE Certificate.



Engine: ¼ hp



Voltage: 220 V, 50 Hz/60 Hz, 2/1 A.



Maximum current: (RMS amps per phase): 3 amps



Capacity: 7 kg of product per batch.



Approximate total weight: 22 kg.



Approximate dimensions of the unit: 50 x 44 x 60 cm



Approximate shipping dimensions (two boxes):



Box No. 1: 36 x 36 x 36 cm. Box No. 2: 36 x 36 x 36 cm.



The melanger is in stock in Moscow; delivery within a week via CDEK.
